Press Fit Insert Specifications & Approvals
Marketing Masters' offers many different sizes of press-fit inserts to suit many different needs and aircraft panel fastener thickness requirements. Our standard press-fit insert requires a 7/16" hole to be drilled in the panel and it has a 7/8" diameter flange that will be glued to the panel skin.
Specs & Descriptions• Bolt Countersink Diameter: diameter of the countersink of the bolt in the press-fit insert.
• Panel Thickness / Length: thickness of the honeycomb panel, corresponding to the length of the press-fit insert.
• Thru Hole Diameter: diameter of the thru hole in the press-fit insert.

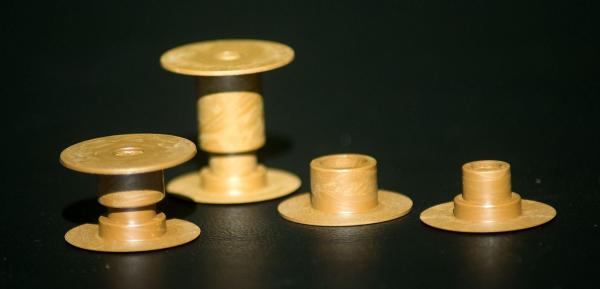

Press Fit Insert Styles
Marketing Masters' fastener catalog contains product descriptions, specifications, and CAD Drawings on our complete line of press fit inserts and clip nuts. When it comes to composite aircraft panel fasteners, Marketing Masters is the standard for every major airline OEM. Click logo for details on each OEM's line of Marketing Masters' Press Fit Insert Standards.
