Click image to enlarge

Available Options

(Must enter 1 to proceed):

  • Standard Lengths:
  • Custom Length:
  • Commonly referred to as "Wall Panel Inserts" because they are widely used in aircraft walls and stowage bins to fasten honeycomb panels to each other and the aircraft structure.
  • Can be used anywhere a fastener is desired, particularly where blind holes that do not pass all the way through the panel are needed or where inserts must be "flush" with the panel skin.
  • Marketing Masters' composite potted-in inserts with unique flow control veins, prevents air pockets, outperforming metal inserts.

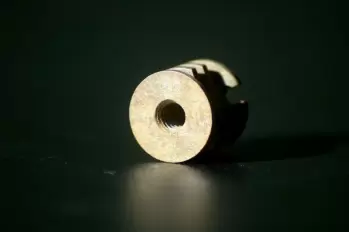

  • Thru Threaded Potted-In Insert, part number AEP1033-6, is one of seven standard part numbers in Marketing Masters AEP1033 potted-in fastener series.
  • Potted-In Inserts Styles, Specs and Approvals. click here
  • Installation Video. Click here
  • Thread Size: 6
  • T Thread: .3750-24 UNJF
  • Bolt Size Reference: 3/8
  • Bolt CSK: N/A
  • Installation Hole Size (in.): .842 - .847
  • Available Insert Lengths (in.): ALL
